Rooftop solar installations in India have surged dramatically, with the country targeting 40 GW of rooftop solar capacity by 2026 as part of its ambitious renewable energy goals. However, designing compliant and efficient rooftop solar systems across India’s diverse landscape presents unique challenges that vary significantly from state to state. From Gujarat’s progressive solar policies to Maharashtra’s stringent urban building codes, from monsoon-heavy Kerala to the arid deserts of Rajasthan, rooftop design India requires specialized knowledge of local regulations, structural requirements, and climate-specific considerations.
For solar EPC companies navigating this complex terrain, understanding state-wise variations in building codes, structural load calculations, and regulatory compliance is not just beneficial—it’s essential for project success. A rooftop solar design that works perfectly in Bangalore may face rejection in Mumbai due to different fire safety norms, while a mounting structure suitable for Delhi’s climate might fail catastrophically during Gujarat’s monsoon season. This comprehensive guide addresses these location-specific challenges, providing solar professionals with the detailed knowledge needed to deliver safe, compliant, and high-performing rooftop solar installations across India’s varied regulatory and climatic landscape.
Understanding Rooftop Design India: Why Location-Specific Planning Matters
India’s rooftop solar sector operates within a framework of national policies overlaid with state-specific regulations, creating a complex regulatory mosaic that solar designers must navigate carefully. The Ministry of New and Renewable Energy (MNRE) provides overarching guidelines, but individual states exercise considerable autonomy in implementing building codes, net metering policies, and safety standards. This decentralized approach means that a solar EPC company working across multiple states must maintain expertise in dozens of different regulatory frameworks.

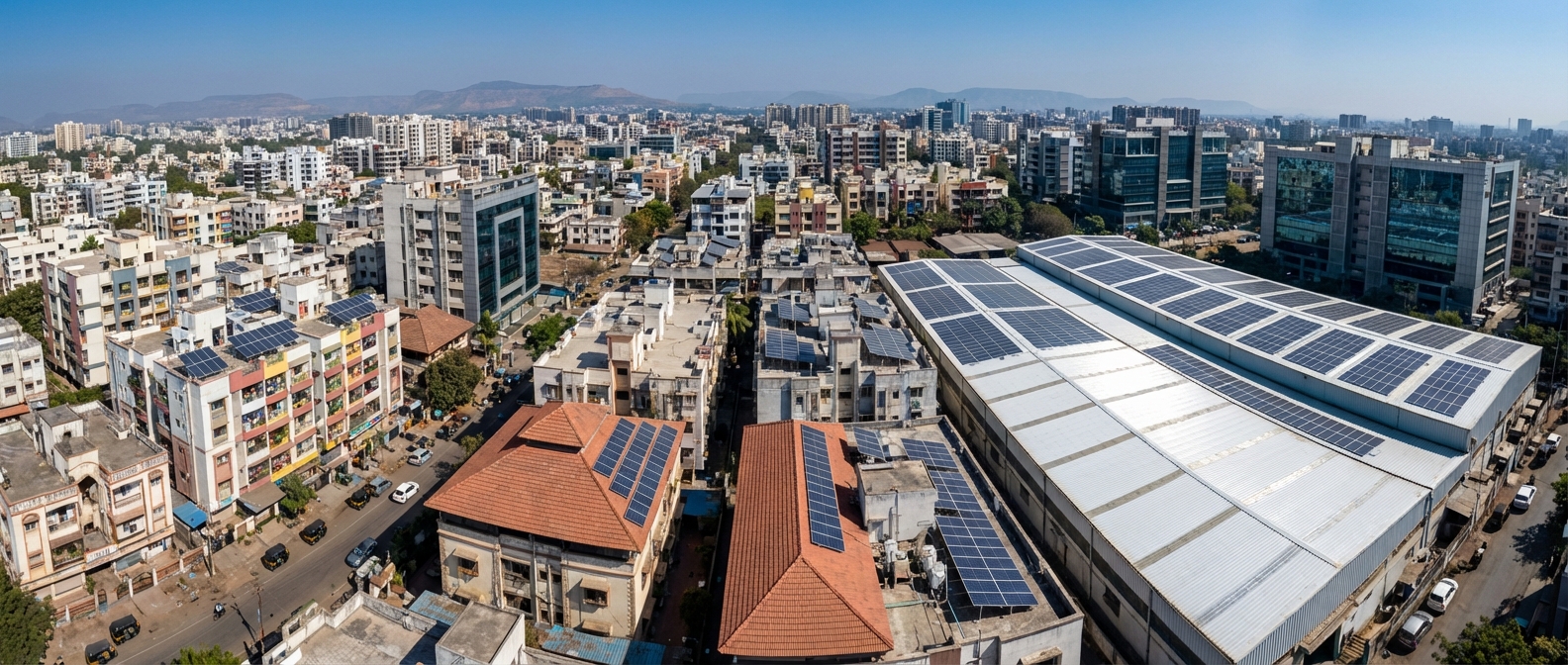

The physical diversity of India compounds these regulatory challenges. The country spans multiple climate zones, from tropical coastal regions to temperate highlands, from monsoon-drenched areas receiving over 3,000mm of annual rainfall to desert regions with less than 150mm. Each climate zone presents distinct design considerations: coastal installations require corrosion-resistant materials and enhanced waterproofing, while installations in cyclone-prone areas demand robust wind load calculations and reinforced mounting structures.
Structural considerations also vary dramatically based on building age, construction type, and local building practices. A typical residential rooftop in Gujarat might feature a reinforced concrete slab capable of supporting significant additional loads, while older buildings in heritage areas of Rajasthan may have traditional construction that requires careful load assessment and potentially costly structural reinforcement. Commercial and industrial buildings present their own challenges, with metal sheet roofing, asbestos sheets, and various other roof types each requiring specialized mounting solutions.
Professional rooftop design India services address these complexities through comprehensive site surveys, detailed structural engineering analysis, and deep knowledge of local regulations. The cost of getting design wrong—whether through permit rejection, structural failure, or non-compliance with safety codes—far exceeds the investment in proper professional design services. For solar EPC companies, partnering with specialized design firms ensures that projects proceed smoothly through approval processes and perform reliably throughout their 25-year operational life.
1. State-Wise Regulatory Framework for Rooftop Design India
Understanding the regulatory landscape is the foundation of successful rooftop solar design in India. While the MNRE’s guidelines provide a national framework, implementation varies significantly across states, with each state electricity regulatory commission (SERC) establishing its own net metering regulations, technical standards, and approval processes. Solar designers must stay current with these evolving regulations to ensure project compliance and avoid costly redesigns.
The National Building Code of India (NBC) 2016 provides baseline structural and safety requirements, but states and municipalities often impose additional requirements. Fire safety regulations, for instance, vary considerably—some states mandate specific clearances between solar arrays and roof edges, while others require dedicated firefighter access pathways. Understanding these nuances is critical for creating designs that pass regulatory scrutiny on the first submission.
Gujarat: Leading State in Solar Adoption
Gujarat has established itself as India’s solar powerhouse, with progressive policies that have made it the preferred destination for solar investments. The Gujarat Solar Power Policy 2021 offers streamlined approval processes for rooftop installations, with single-window clearance mechanisms that significantly reduce project timelines. The state’s net metering regulations allow systems up to 500 kW for residential and commercial consumers, with banking facilities that credit excess generation for up to 12 months.
From a structural perspective, Gujarat follows the National Building Code but adds specific requirements for cyclonic wind loads, particularly in coastal districts like Kutch and Saurashtra. The state experiences wind speeds exceeding 50 m/s during severe cyclones, necessitating robust mounting structures designed to IS 875 (Part 3) standards with appropriate wind zone factors. Gujarat’s building authorities also emphasize waterproofing integrity, requiring detailed drawings showing how mounting penetrations are sealed to prevent monsoon water ingress.
The Gujarat Energy Development Agency (GEDA) provides technical guidelines that specify minimum clearances, cable sizing standards, and earthing requirements. Rooftop solar designs in Gujarat must include lightning protection systems compliant with IS 2309, particularly important given the state’s thunderstorm activity during monsoon months. For solar EPC companies, Gujarat’s well-defined regulatory framework makes it one of the more predictable states for rooftop design India projects, though the structural engineering requirements remain demanding.
Maharashtra: Urban Rooftop Solar Regulations
Maharashtra, home to India’s financial capital Mumbai and the industrial hub of Pune, presents unique challenges for rooftop solar design. The Maharashtra State Electricity Distribution Company Limited (MSEDCL) has established comprehensive net metering guidelines that differ slightly across its various distribution zones. The state allows net metering for systems up to 1 MW, but the approval process involves multiple stakeholders including the local municipal corporation, fire department, and distribution company.
Mumbai’s dense urban environment imposes particularly stringent requirements. The Mumbai Fire Brigade mandates minimum 1-meter clearances around solar arrays for firefighter access, and buildings above certain heights require additional fire safety measures including rapid shutdown systems. The Brihanmumbai Municipal Corporation (BMC) requires structural stability certificates from licensed structural engineers, with detailed calculations showing that the existing structure can support the additional dead load and wind loads imposed by the solar installation.
Pune and other Maharashtra cities follow similar frameworks but with local variations. The state’s coastal areas, including Mumbai and the Konkan region, require corrosion-resistant mounting structures, typically hot-dip galvanized steel or aluminum, to withstand the saline atmosphere. Maharashtra’s building regulations also emphasize seismic considerations, as parts of the state fall in seismic zones III and IV, requiring designs that account for earthquake forces per IS 1893 standards.
Karnataka: Tech Hub Solar Standards
Karnataka, particularly Bangalore, has emerged as a major market for commercial and industrial rooftop solar installations. The Bangalore Electricity Supply Company (BESCOM) and other state distribution companies have established clear net metering frameworks, with BESCOM processing thousands of rooftop solar applications annually. The state’s regulations emphasize grid safety, requiring anti-islanding protection and automatic disconnection systems that prevent solar systems from feeding power into the grid during outages.
Bangalore’s moderate climate reduces some design challenges—the city experiences neither extreme heat nor severe cyclonic conditions—but the region’s occasional high winds during pre-monsoon storms require careful wind load analysis. The Bruhat Bengaluru Mahanagara Palike (BBMP), Bangalore’s municipal corporation, requires building plan approvals for rooftop solar installations on commercial buildings, with structural engineers certifying that the additional loads are within permissible limits.
Karnataka’s industrial areas, particularly around Bangalore, Mysore, and Hubli, feature numerous factories with metal sheet roofing. Designing solar installations for these structures requires specialized expertise in non-penetrative mounting systems or carefully engineered penetrations that maintain roof weatherproofing. The state’s regulations also mandate proper cable management, with cables routed through conduits to prevent damage and fire hazards, a requirement that impacts both design and installation costs.
2. Structural Load Requirements and Engineering Standards for Rooftop Design India
Structural engineering forms the backbone of safe and compliant rooftop design India projects. Every rooftop solar installation imposes additional loads on the building structure, and ensuring that the existing structure can safely support these loads is a non-negotiable requirement. Structural failures in rooftop solar installations, while rare, can have catastrophic consequences, making rigorous structural analysis essential for every project.

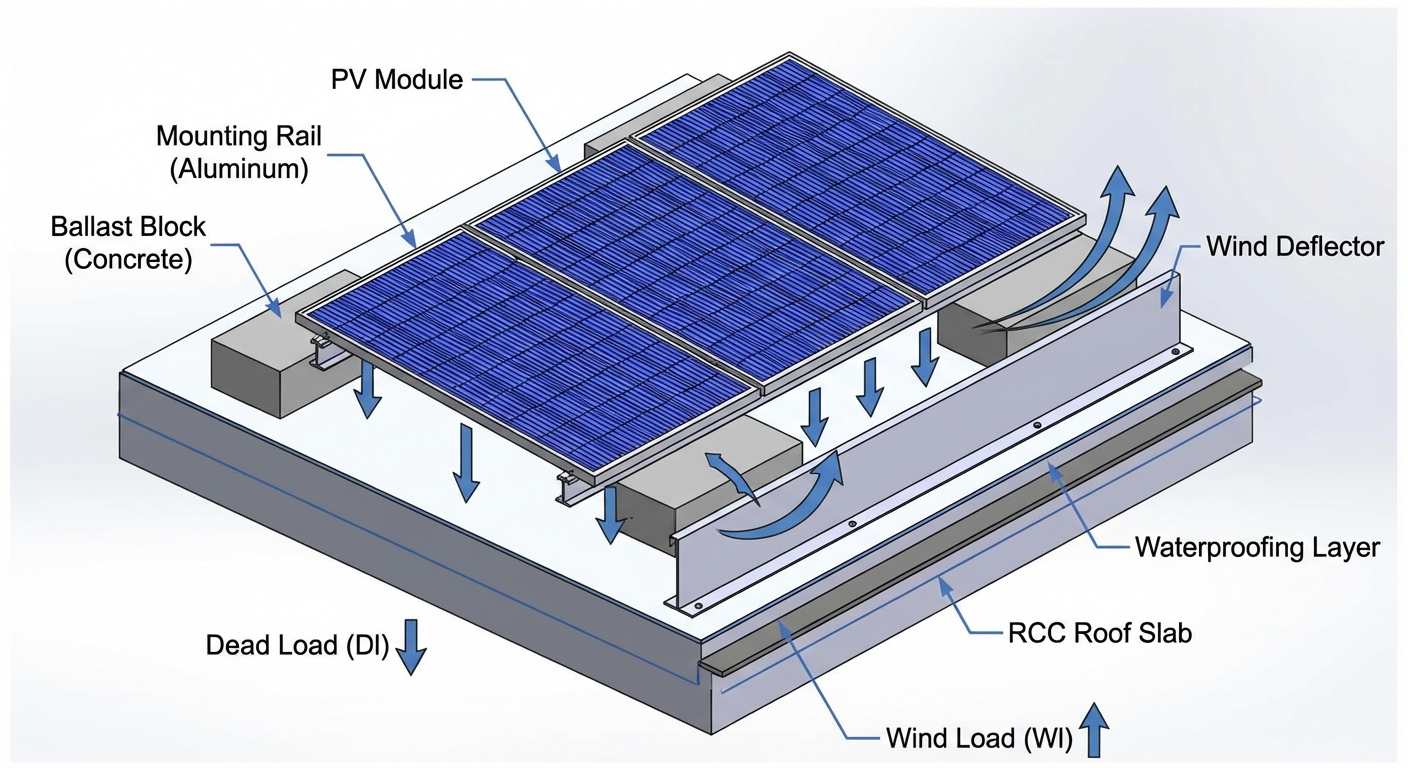

The primary loads that rooftop solar designers must account for include dead loads (the permanent weight of solar modules, mounting structures, and associated equipment), live loads (temporary loads from maintenance personnel, snow in applicable regions, and accumulated debris), and wind loads (both uplift forces and lateral forces from wind pressure). Indian Standard codes provide the framework for calculating these loads, with IS 875 being the primary reference for load calculations.
IS 875 (Part 1) addresses dead loads and provides unit weights for various construction materials. A typical crystalline silicon solar module weighs approximately 18-22 kg per square meter, while the mounting structure adds another 8-12 kg per square meter, resulting in total dead loads of 25-35 kg per square meter for the complete solar installation. These loads must be added to the existing dead loads of the roof structure itself, and the combined load must remain within the structure’s design capacity.
IS 875 (Part 2) covers live loads, specifying minimum live load requirements for roofs based on their accessibility and use. For rooftops with solar installations, designers typically consider a live load of 75-100 kg per square meter to account for maintenance activities. In regions that experience snowfall, such as parts of Himachal Pradesh and Uttarakhand, snow loads must be calculated per IS 875 (Part 4), though these regions represent a small fraction of India’s rooftop solar market.
Wind loads, governed by IS 875 (Part 3), often represent the most critical design consideration for rooftop solar installations. India is divided into six wind zones, with basic wind speeds ranging from 33 m/s in low-wind areas to 55 m/s in cyclone-prone coastal regions. Wind creates both uplift forces that can tear solar arrays from rooftops and lateral forces that stress mounting structures. The calculation of wind loads considers multiple factors including wind zone, terrain category, building height, and the tilt angle of solar modules.
For a typical rooftop solar installation in a moderate wind zone, wind uplift forces can reach 1.5-2.0 kN per square meter, significantly exceeding the dead load of the installation itself. This necessitates robust anchoring systems, either through penetrative mounting (bolts anchored into the roof structure) or ballasted mounting (concrete blocks providing counterweight). The choice between these approaches depends on roof type, waterproofing considerations, and structural capacity.
IS 800 provides design standards for steel structures, applicable to the mounting structures used in rooftop solar installations. The code specifies material grades, connection design, and safety factors that ensure structural integrity under all load combinations. Solar mounting structures must be designed for the most adverse combination of dead load, live load, and wind load, with appropriate safety factors applied.
Seismic considerations, per IS 1893, become relevant in higher seismic zones. India’s seismic zonation ranges from Zone II (low seismicity) to Zone V (very high seismicity), with different parts of the country falling into different zones. In higher seismic zones, solar mounting structures must be designed to withstand horizontal earthquake forces, which requires additional bracing and robust connections between the mounting structure and the building.
Roof type significantly influences structural design approaches. RCC (Reinforced Cement Concrete) flat roofs, common in modern Indian construction, typically offer the best load-bearing capacity and allow for straightforward mounting solutions. Metal sheet roofs, prevalent in industrial buildings, require specialized clamps or brackets that distribute loads across multiple roof ribs without damaging the roofing material. Asbestos cement sheet roofs, found in older industrial structures, present particular challenges due to their brittleness and limited load capacity, often requiring structural reinforcement before solar installation. Tile roofs, common in residential construction in South India, necessitate careful mounting solutions that avoid breaking tiles while providing secure attachment points.
Professional structural engineering services for rooftop design India projects include detailed structural analysis, load calculations per applicable IS codes, and structural stability certificates required for permit approvals. For solar EPC companies, investing in proper structural engineering prevents costly failures and ensures that installations remain safe and functional throughout their operational life. Heaven Designs provides comprehensive structural engineering services specifically tailored for solar projects, with expertise in analyzing diverse roof types and designing mounting solutions that meet all applicable codes.
3. Climate-Specific Design Considerations Across India

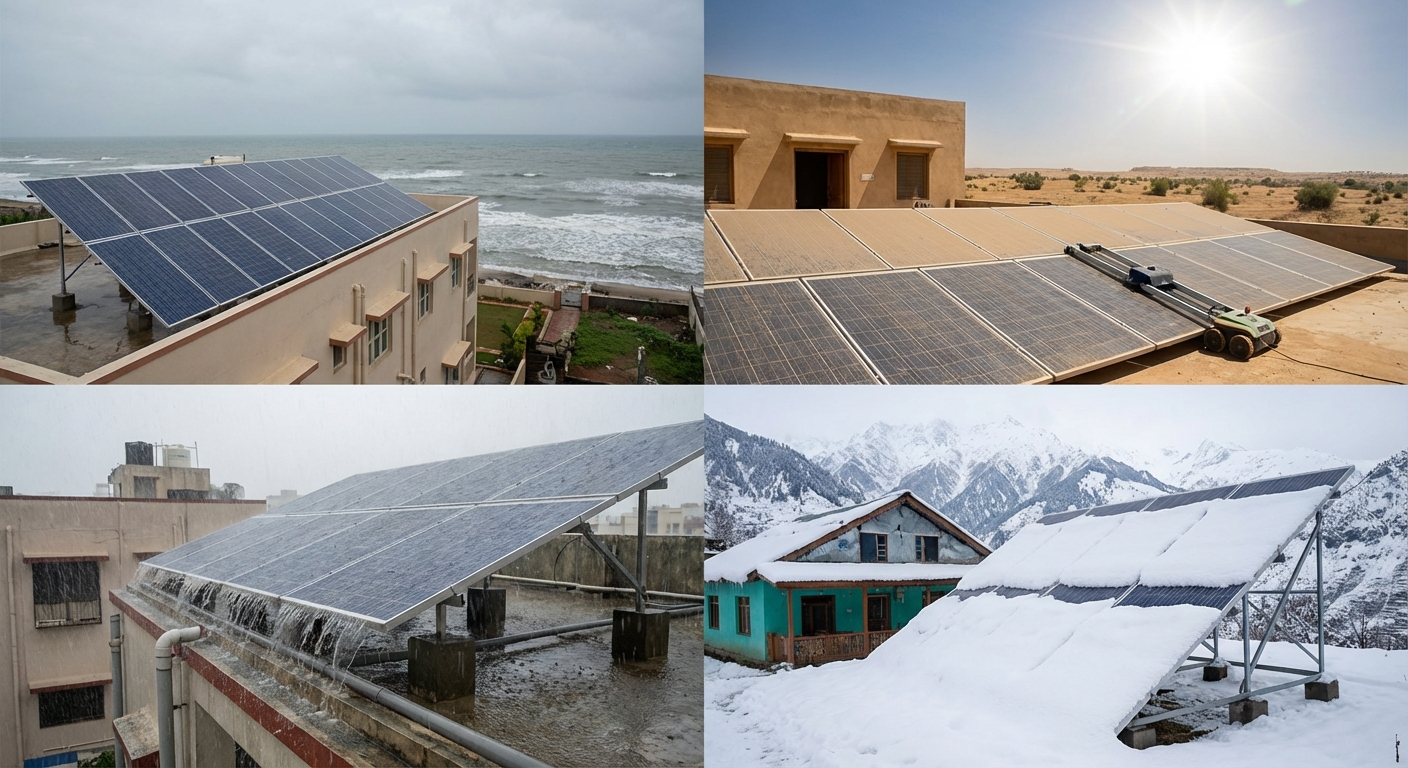

India’s vast geographical expanse encompasses multiple climate zones, each presenting distinct challenges for rooftop solar design. Understanding these climate-specific considerations is essential for creating installations that perform reliably and withstand local environmental conditions over their 25-year design life. Climate factors influence not just structural design but also material selection, waterproofing strategies, and maintenance requirements.
The monsoon season, which affects most of India from June through September, represents the most significant climate challenge for rooftop solar installations. Heavy rainfall, sometimes exceeding 200mm in a single day, tests waterproofing integrity and drainage systems. Rooftop solar designs must ensure that mounting structure penetrations through the roof membrane are properly sealed with appropriate waterproofing compounds and flashing. Inadequate waterproofing can lead to water ingress, causing damage to the building interior and potentially compromising structural integrity over time.
Drainage considerations become critical during monsoon months. Solar arrays must be positioned and tilted to avoid creating water pooling areas on the roof. Standing water not only stresses the roof structure but can also lead to algae growth and accelerated degradation of roofing materials. Designers must ensure that water can flow freely to existing roof drains, and in some cases, additional drainage provisions may be necessary. The spacing between module rows must account for water runoff, preventing water from one row from cascading onto modules in the row below.
Wind considerations vary dramatically across India. Coastal regions, particularly along the eastern coast (Odhra, Andhra Pradesh, Tamil Nadu) and western coast (Gujarat, Maharashtra, Kerala), experience cyclonic storms with wind speeds that can exceed 50 m/s. These areas fall into higher wind zones per IS 875 (Part 3), requiring robust mounting structures with enhanced anchoring. The 2021 Cyclone Tauktae, which impacted Gujarat and Maharashtra, demonstrated the importance of proper wind load design, with poorly designed installations suffering significant damage while properly engineered systems remained intact.
Interior regions generally experience lower wind speeds, but localized wind phenomena can create unexpected challenges. Dust storms in Rajasthan and parts of Gujarat, pre-monsoon squalls in North India, and thunderstorm-associated winds in various regions all require consideration in design. The mounting structure must resist not just sustained wind loads but also sudden wind gusts that can create dynamic loading conditions.
Temperature extremes affect both module performance and structural behavior. Rajasthan’s desert regions experience summer temperatures exceeding 45°C, while winter temperatures can drop below 5°C, creating a temperature range of over 40°C. This thermal cycling causes expansion and contraction of mounting structures, requiring proper allowance for thermal movement in structural connections. Module mounting clamps must accommodate thermal expansion without creating excessive stress on module frames, which could lead to micro-cracking of solar cells.
High ambient temperatures also impact solar module performance, with crystalline silicon modules losing approximately 0.4-0.5% efficiency for every degree Celsius above 25°C. While this performance factor doesn’t directly affect structural design, it influences energy yield calculations and system sizing, which are integral parts of comprehensive rooftop design India services.
Dust and pollution present significant challenges in many Indian cities and industrial areas. Delhi’s air quality issues, industrial pollution in manufacturing hubs, and dust from construction activities all lead to soiling of solar modules, reducing energy generation. While regular cleaning addresses this operationally, design considerations include ensuring adequate tilt angles (typically minimum 10-15 degrees) to promote self-cleaning during rains and providing safe access for maintenance personnel to perform cleaning operations.
Coastal corrosion affects installations within approximately 10-15 kilometers of the coastline. The saline atmosphere accelerates corrosion of metal components, requiring the use of corrosion-resistant materials. Hot-dip galvanized steel with minimum 80-micron zinc coating, aluminum alloy structures, or stainless steel fasteners become necessary in these environments. Even with proper material selection, coastal installations require more frequent inspection and maintenance to ensure long-term reliability.
Humidity levels also vary significantly across India, with coastal and northeastern regions experiencing high humidity year-round while desert regions remain dry. High humidity can lead to condensation within electrical enclosures, potentially causing corrosion of electrical connections and equipment failure. Proper sealing of inverters, combiner boxes, and other electrical equipment becomes critical in high-humidity environments.
4. Technical Design Parameters for Compliant Rooftop Solar Systems
Beyond structural and climate considerations, successful rooftop design India requires careful attention to technical design parameters that determine system performance, safety, and regulatory compliance. These parameters encompass module selection and layout, electrical design, safety systems, and integration with the building’s existing electrical infrastructure.
Module selection involves balancing efficiency, cost, and physical dimensions. Higher-efficiency modules (20-22% efficiency) allow more generation capacity in limited roof space, making them attractive for space-constrained urban installations despite their higher cost. Standard efficiency modules (18-20% efficiency) offer better cost-effectiveness for installations where roof space is not limiting. Module dimensions affect layout optimization, larger modules (typically 2000mm x 1000mm for commercial applications) may not fit efficiently on smaller residential roofs, while smaller modules (1650mm x 990mm) provide more layout flexibility.
The tilt angle of solar modules significantly impacts energy generation. For maximum annual energy yield in India, the optimal tilt angle approximately equals the latitude of the location. However, practical considerations often lead to different tilt angles. In northern India (latitudes 25-30°N), optimal tilts range from 25-30 degrees, while southern locations (latitudes 10-15°N) benefit from 10-15 degree tilts. Many rooftop installations use lower tilt angles (10-15 degrees) regardless of latitude to maximize the number of module rows that fit on the available roof area, accepting a small energy yield reduction in exchange for greater installed capacity.
Orientation ideally places modules facing true south in the northern hemisphere for maximum solar exposure. However, rooftop constraints often necessitate compromises. East-west orientation, while reducing peak generation, can be advantageous for commercial installations that benefit from morning and evening generation matching their consumption patterns. North-facing installations should generally be avoided as they receive minimal direct sunlight, though in space-constrained situations, even north-facing arrays may be considered with appropriate energy yield expectations.

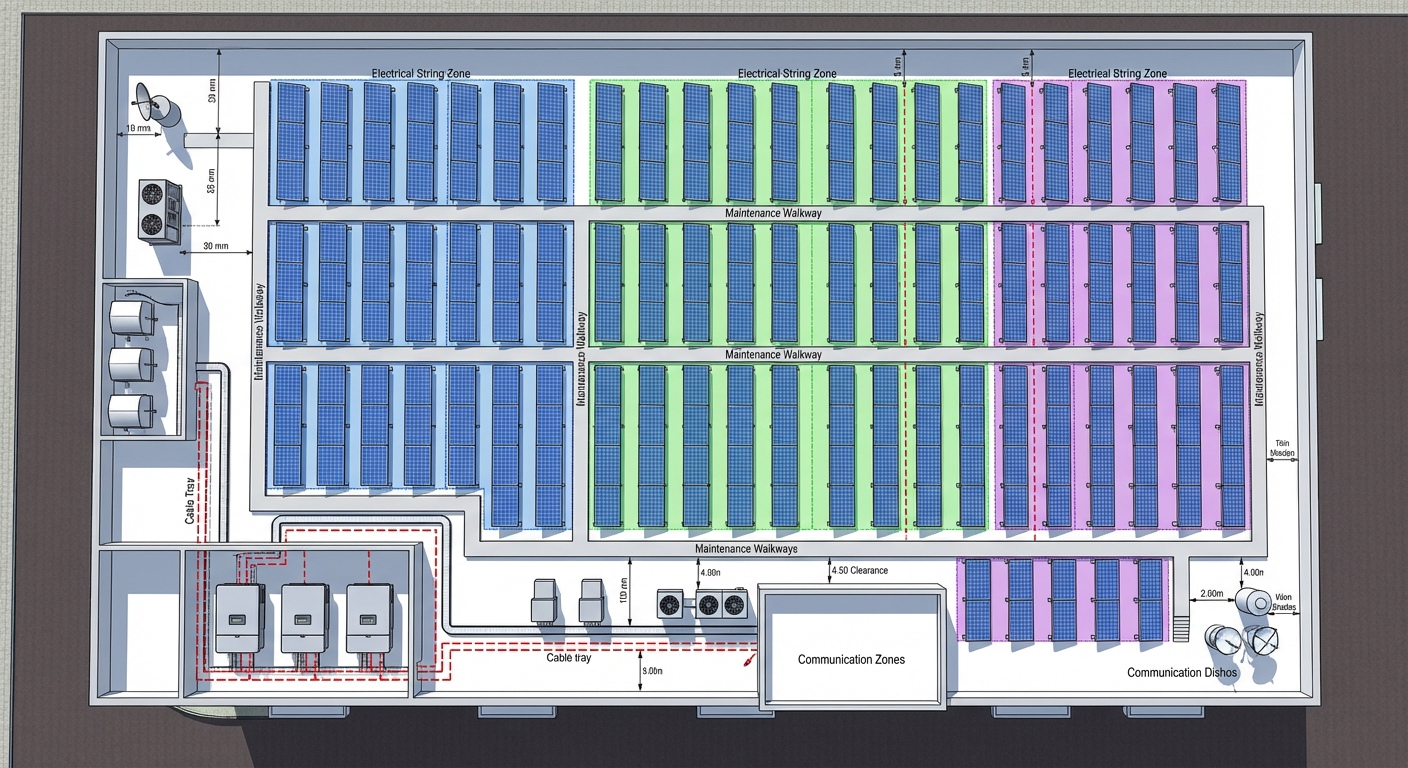

Row spacing must prevent inter-row shading while maximizing roof utilization. The spacing calculation considers the module tilt angle, module height, and the sun’s elevation angle during winter months when the sun is lowest in the sky. A common rule of thumb suggests spacing of approximately 2-3 times the module height (measured perpendicular to the roof surface) to avoid shading during peak generation hours. Sophisticated design software performs detailed shadow analysis, calculating shading losses hour-by-hour throughout the year to optimize the spacing-versus-capacity tradeoff.
String design involves grouping modules in series to achieve the appropriate voltage for the inverter input. String inverters typically require input voltages of 400-800V DC, which translates to strings of 10-20 modules depending on module specifications. String design must account for temperature effects, module voltage decreases with increasing temperature, so strings must be sized to remain within inverter voltage windows across the full operating temperature range. Proper string design also considers module mismatch, ensuring that modules within a string have similar electrical characteristics to avoid losses from current mismatch.
Inverter placement requires careful consideration of multiple factors. Inverters should be located in shaded, well-ventilated areas to avoid excessive operating temperatures that reduce efficiency and lifespan. Proximity to the solar array minimizes DC cable runs, reducing voltage drop and cable costs. However, inverters must also be accessible for maintenance while being protected from weather exposure. Many rooftop installations place inverters on external walls just below the rooftop level, providing weather protection while maintaining accessibility.
Cable routing must follow electrical safety codes and building regulations. DC cables from solar arrays to inverters should be routed through conduits or cable trays, protecting them from physical damage and UV exposure. Cable sizing must account for voltage drop, with DC cables typically sized to limit voltage drop to 1-2% under full load conditions. AC cables from inverters to the building’s electrical panel follow standard electrical installation practices per IS 732 and the National Electrical Code.
Lightning protection and earthing are critical safety requirements for rooftop solar installations. Solar arrays, being elevated metallic structures, can attract lightning strikes. Proper earthing per IS 3043 provides a low-resistance path for lightning current to dissipate safely into the ground. Lightning arresters on DC and AC sides protect equipment from voltage surges. The earthing system must achieve resistance values below 5 ohms, often requiring multiple earth pits connected in parallel, particularly in areas with poor soil conductivity.
Safety disconnects, overcurrent protection devices, and proper labeling complete the electrical design. Disconnects on both DC and AC sides allow safe isolation of the system for maintenance. Circuit breakers or fuses protect cables from overcurrent conditions. Clear labeling of all electrical components, cables, and disconnects ensures that maintenance personnel and emergency responders can safely work with the system.
5. Site Survey and Feasibility Assessment Best Practices
A comprehensive site survey forms the foundation of successful rooftop design India projects. The survey gathers critical information about the site’s physical characteristics, structural capacity, electrical infrastructure, and regulatory context, enabling designers to create accurate, compliant designs and identify potential challenges before they become costly problems during installation.
The structural assessment begins with identifying the roof type and construction method. For RCC roofs, surveyors document the slab thickness, column spacing, and beam locations. Building plans, when available, provide valuable information about structural design loads and reinforcement details. For older buildings without available plans, structural engineers may need to perform non-destructive testing or limited destructive testing to assess structural capacity. Metal sheet roofs require assessment of sheet gauge, purlin spacing, and the condition of existing fasteners. Asbestos or tile roofs need careful evaluation of their load-bearing capacity and condition.
Visual inspection identifies existing roof damage, water leakage signs, and areas requiring repair before solar installation. Cracks in RCC roofs, rust on metal sheets, broken tiles, or deteriorated waterproofing membranes must be documented and addressed. Installing solar arrays over damaged roofs creates long-term maintenance challenges and potential liability issues, making pre-installation roof repairs a critical consideration in project planning and budgeting.
Shading analysis identifies obstructions that cast shadows on the proposed solar array location. Nearby buildings, trees, water tanks, HVAC equipment, parapet walls, and other rooftop structures all create shading that reduces energy generation. Modern site survey tools include solar pathfinders or digital shading analysis tools that capture the sun’s path throughout the year and calculate shading losses. Drone surveys with photogrammetry can create detailed 3D models of the site, enabling precise shadow analysis in design software.
Roof dimensions and available area must be accurately measured. Surveyors document the usable roof area, accounting for setbacks from roof edges (typically 1 meter for safety and fire code compliance), clearances around existing equipment, and access pathways for maintenance. The roof’s orientation and any slopes or multiple roof levels are recorded, as these factors significantly impact system layout and capacity.
Electrical infrastructure assessment examines the building’s existing electrical system. Surveyors identify the main electrical panel location, available space for additional breakers, and the capacity of the existing service connection. The distance from the proposed inverter location to the electrical panel affects cable sizing and installation costs. For net metering installations, the utility meter location and type must be documented, as some older meters may require replacement with bidirectional meters.
Grid connectivity assessment involves understanding the local distribution network characteristics. The voltage level (typically 230V single-phase for residential or 415V three-phase for commercial), grid stability, and any known power quality issues affect inverter selection and system design. In areas with weak grids or frequent outages, additional considerations for grid support functions or battery backup integration may be relevant.
Regulatory and permitting requirements vary by location, and the site survey should identify the specific approvals required. This includes building department permits, fire department clearances, utility net metering approvals, and any special requirements for heritage buildings or areas with architectural restrictions. Understanding these requirements early in the project prevents delays during the approval process.
Access and logistics considerations affect installation planning and costs. Surveyors document how materials and equipment will reach the rooftop, via internal staircases, external ladders, or crane lifts. Buildings without roof access may require temporary scaffolding or specialized lifting equipment, adding to project costs. Parking availability for installation vehicles and material storage areas also factor into project planning.
Professional site survey services, such as those offered by Heaven Designs, provide comprehensive documentation including site photographs, measurement data, structural assessment reports, and shading analysis. This documentation forms the basis for accurate design and enables realistic project cost estimation. For solar EPC companies working across multiple locations in India, partnering with a design firm that offers nationwide site survey and feasibility assessment services ensures consistent quality and reduces the burden of maintaining local survey teams in every region.
6. Permit Design and Documentation Requirements
Obtaining necessary permits and approvals represents a critical phase in rooftop solar project execution. Permit design involves creating the specific drawings, calculations, and documentation required by various authorities to approve the installation. The complexity and requirements vary significantly across Indian states and municipalities, making local expertise essential for navigating the approval process efficiently.
Structural drawings form the core of permit submissions. These include a site plan showing the building footprint and solar array location, roof plan with module layout and dimensions, mounting structure details showing how modules attach to the roof, and structural calculations demonstrating that the roof can support the additional loads. Structural drawings must be signed and sealed by a licensed structural engineer, with the engineer certifying that the design complies with applicable IS codes and local building regulations.
The structural stability certificate is a mandatory document in most Indian states. This certificate, issued by a qualified structural engineer, confirms that the existing building structure can safely support the proposed solar installation under all load conditions including dead load, live load, wind load, and seismic load where applicable. The certificate typically includes detailed load calculations, analysis methodology, and a statement of compliance with IS 875, IS 800, IS 1893, and other relevant codes.
Electrical single-line diagrams (SLD) show the complete electrical configuration of the solar system. The SLD includes the solar array configuration, string connections, inverter specifications, cable sizes, overcurrent protection devices, disconnects, earthing system, and connection point to the building’s electrical system. For net metering installations, the SLD must show the bidirectional meter location and the interface with the utility grid. Electrical drawings must comply with IS 732 and local electrical codes.
Fire safety documentation has become increasingly important, particularly in urban areas and for commercial buildings. Fire safety drawings show clearances around the solar array for firefighter access, typically minimum 1 meter from roof edges and between array sections. Some jurisdictions require rapid shutdown systems that quickly de-energize DC conductors in emergency situations. Fire safety certificates from the local fire department may be required before final project approval.
Waterproofing details must demonstrate how roof penetrations for mounting structure anchors are sealed to prevent water ingress. Detail drawings show the waterproofing method, typically involving sealants, flashing, and waterproofing membranes around each penetration point. For ballasted mounting systems that avoid roof penetrations, drawings must show how the ballast blocks are positioned and secured to prevent movement during high winds.
Net metering application documents vary by state and distribution company. Typical requirements include the electrical SLD, inverter specifications and certifications, module specifications, structural stability certificate, building ownership proof, and electricity bill copies. Some states require feasibility studies or technical feasibility reports from the distribution company before approving net metering connections. The application process timeline varies from 2-4 weeks in states with streamlined processes to 2-3 months in states with more bureaucratic procedures.
Building department approvals may be required depending on local regulations. Some municipalities treat rooftop solar installations as building modifications requiring plan approval, while others have exempted small residential systems from this requirement. Commercial and industrial installations typically require building department approval regardless of size. The approval process involves submitting architectural and structural drawings, obtaining clearances from various departments, and paying applicable fees.
Environmental clearances are generally not required for rooftop solar installations, as they are considered environmentally beneficial projects. However, installations in ecologically sensitive areas, heritage zones, or on government buildings may require additional approvals from specialized authorities.
The timeline for permit approvals varies significantly across India. States with single-window clearance systems and online application portals, such as Gujarat and Karnataka, typically process applications within 2-4 weeks. States with more fragmented approval processes may require 6-8 weeks or longer. For solar EPC companies, understanding these timelines is critical for project planning and managing client expectations.
Professional permit design services streamline the approval process by ensuring that all documentation is complete, accurate, and compliant with local requirements on the first submission. Incomplete or non-compliant submissions lead to rejections and resubmissions, delaying projects and increasing costs. Heaven Designs specializes in creating permit-ready documentation for rooftop solar projects across India, with deep knowledge of state-specific requirements and established relationships with approval authorities that facilitate smooth processing.
7. Common Design Challenges and Solutions for Rooftop Design India Projects
Despite careful planning, rooftop solar projects frequently encounter challenges that require creative engineering solutions. Understanding these common challenges and their solutions helps solar EPC companies anticipate issues and develop contingency plans, ensuring project success even when site conditions are less than ideal.
Limited roof space is perhaps the most common challenge, particularly in urban residential installations where clients want maximum generation capacity from constrained roof areas. Solutions include using higher-efficiency modules to maximize watts per square meter, optimizing module layout to utilize every available space including irregular roof sections, and considering dual-tilt or adjustable mounting systems that can accommodate complex roof geometries. In some cases, ground-mounted or carport installations may supplement rooftop capacity when roof space is insufficient.
Weak roof structures that cannot support standard solar installations require careful evaluation and creative solutions. For marginally weak structures, lightweight mounting systems using aluminum instead of steel can reduce dead loads. Ballasted mounting systems distribute loads more evenly across the roof surface compared to point-loaded penetrative mounting. In cases where the existing structure is significantly under-capacity, structural reinforcement may be necessary, though this adds substantial cost and complexity. Alternatively, installing a smaller system that remains within the structure’s capacity may be the most practical solution.
Complex roof geometries with multiple levels, slopes, and orientations challenge system layout optimization. Advanced design software with 3D modeling capabilities helps visualize different layout options and calculate their respective energy yields. Sometimes, accepting multiple orientations and using microinverters or power optimizers to minimize mismatch losses provides better overall results than trying to force a uniform orientation. Custom mounting solutions may be necessary for unusual roof shapes or angles.
Shading from unavoidable obstructions reduces system performance but can be mitigated through careful design. Module-level power electronics (microinverters or DC optimizers) minimize the impact of partial shading by allowing each module to operate at its maximum power point independently. Strategic layout positioning places modules in the least-shaded areas, even if this means non-uniform array configurations. In some cases, removing or relocating obstructions (such as water tanks or HVAC equipment) may be cost-effective if the energy generation improvement justifies the expense.
Grid stability and power quality issues affect system performance and reliability in areas with weak electrical infrastructure. Modern inverters with wide input voltage ranges and grid support functions can operate under less-than-ideal grid conditions. For locations with frequent grid outages, hybrid inverters with battery backup capability provide continued power supply during outages, though this significantly increases system cost. Proper earthing and surge protection become even more critical in areas with poor power quality to protect equipment from voltage fluctuations and transients.
Waterproofing concerns on older roofs or roofs with existing leakage issues require addressing before solar installation. Pre-installation roof repairs, while adding to project cost, prevent future problems and liability issues. For roofs where penetrative mounting is problematic, ballasted mounting systems avoid penetrations entirely, though they require adequate structural capacity to support the additional ballast weight. Proper waterproofing details around unavoidable penetrations, using multiple layers of protection including sealants, flashing, and waterproofing membranes, ensure long-term weather resistance.
Maintenance access and safety must be designed into the system from the beginning. Walkways between module rows allow safe access for cleaning and maintenance without stepping on modules. Anchor points for fall protection equipment enable safe working at heights. Adequate spacing around roof edges and between array sections complies with fire safety requirements while providing safe access. For large commercial installations, permanent ladder access and safety railings may be necessary.
Cost optimization without compromising quality or compliance requires balancing multiple factors. Value engineering reviews identify opportunities to reduce costs through alternative materials, optimized layouts, or standardized components while maintaining performance and safety. Bulk procurement of materials across multiple projects reduces per-project costs. Standardized mounting solutions and installation procedures improve efficiency and reduce labor costs. However, cost optimization must never compromise structural safety, electrical safety, or regulatory compliance, the long-term costs of failures far exceed any short-term savings from cutting corners.
8. Working with Professional Design Partners for Rooftop Design India
The complexity of rooftop design India projects, spanning structural engineering, electrical design, regulatory compliance, and climate-specific considerations, makes partnering with specialized design firms a strategic advantage for solar EPC companies. Professional design services deliver multiple benefits that directly impact project success, profitability, and client satisfaction.
Expertise across diverse regulations and conditions represents perhaps the most significant value of professional design partners. A specialized solar design firm maintains current knowledge of regulations across multiple states, understands the nuances of different approval processes, and has established relationships with regulatory authorities. This expertise prevents costly mistakes, reduces approval timelines, and ensures first-time approval success. For EPC companies working across India, maintaining this breadth of expertise in-house would require substantial resources and ongoing training investments.
Comprehensive design deliverables from professional design services include all documentation needed for project execution. Typical deliverables include detailed structural drawings with load calculations, electrical single-line diagrams and cable schedules, module layout plans with shading analysis, mounting structure design and specifications, permit application documents, bill of materials with specifications, and installation guidelines. These complete deliverables enable smooth project execution and reduce field issues arising from incomplete or ambiguous design information.
Structural engineering certification by licensed engineers provides the credibility and legal compliance required for permit approvals. Professional design firms employ qualified structural engineers who can certify designs and take professional responsibility for structural adequacy. This certification is mandatory for permit approvals in most Indian states and protects EPC companies from liability related to structural failures.
Advanced design tools and software used by professional design firms enable optimization that may not be possible with basic design approaches. Sophisticated software performs detailed shading analysis, optimizes module layouts for maximum energy yield, calculates precise structural loads, and generates professional-quality drawings. The investment in these tools and the expertise to use them effectively is substantial, making outsourcing to specialized firms more cost-effective than developing equivalent in-house capabilities.
Cost-effectiveness of outsourcing design becomes apparent when considering the full cost of in-house design capabilities. Professional design firms spread their infrastructure costs, software licenses, and expert personnel across many projects, achieving economies of scale that individual EPC companies cannot match. For EPC companies, paying for design services on a per-project basis eliminates the fixed costs of maintaining design staff, software licenses, and ongoing training, converting these fixed costs into variable costs that scale with business volume.
Faster project turnaround results from professional design firms’ dedicated focus and established processes. While an EPC company’s in-house team may juggle design work alongside other responsibilities, a specialized design firm can dedicate resources to complete designs quickly. Typical turnaround times for rooftop solar designs range from 3-7 days for residential projects to 2-3 weeks for complex commercial installations, depending on project size and complexity. This speed enables EPC companies to respond quickly to client requirements and maintain competitive project timelines.
Risk mitigation through professional design reduces the likelihood of costly errors, permit rejections, structural failures, or non-compliance issues. Professional design firms carry professional liability insurance that provides additional protection. Their quality control processes, peer reviews, and adherence to established standards minimize design errors that could lead to field problems or safety issues.
Heaven Designs has established itself as a trusted design partner for solar EPC companies across India, with a proven track record of 628+ MW of design work for 752+ clients. The company’s team of over 50 engineers and consultants brings deep expertise in rooftop design India projects, understanding the nuances of state-specific regulations, structural requirements, and climate considerations. Services span the complete design lifecycle from initial site surveys and feasibility studies through detailed engineering design and permit documentation.
The company’s approach emphasizes accuracy, cost-effectiveness, and maximizing energy generation while optimizing project costs, critical factors for EPC companies’ profitability and client satisfaction. With experience across residential, commercial, and industrial rooftop installations in diverse Indian states, Heaven Designs understands the practical challenges that EPC companies face and delivers designs that are not just technically compliant but also practical to install and maintain.
For solar EPC companies looking to expand their rooftop solar business across India’s diverse markets, partnering with Heaven Designs provides access to specialized expertise without the overhead of building in-house capabilities. The company’s understanding of design timelines and their impact on project costs helps EPC companies plan projects effectively and maintain profitability while delivering high-quality installations to their clients.
Conclusion: Excellence in Rooftop Design India Through Professional Expertise
Successfully navigating India’s complex landscape of state-specific regulations, diverse climate conditions, and varied structural requirements demands specialized expertise that goes far beyond basic solar knowledge. From Gujarat’s progressive solar policies to Maharashtra’s stringent urban building codes, from monsoon-heavy coastal regions to arid desert climates, each rooftop design India project presents unique challenges that require careful analysis, detailed engineering, and comprehensive regulatory knowledge.
The structural engineering requirements alone, calculating dead loads, live loads, wind loads, and seismic forces per multiple IS codes, then designing mounting solutions for diverse roof types from RCC slabs to metal sheets, require specialized expertise that most solar EPC companies cannot economically maintain in-house. Add to this the electrical design considerations, climate-specific material selection, permit documentation requirements, and the constant evolution of state-level regulations, and the value of professional design partnerships becomes clear.
For solar EPC companies committed to delivering safe, compliant, high-performing rooftop solar installations across India, investing in professional design services is not an expense, it’s a strategic advantage that reduces risk, accelerates project timelines, ensures regulatory compliance, and ultimately enhances profitability. The cost of design services represents a small fraction of total project cost, yet the impact on project success is substantial.
As India continues its ambitious push toward 40 GW of rooftop solar capacity, the demand for expert rooftop design India services will only intensify. EPC companies that establish partnerships with specialized design firms position themselves to capture this growth opportunity while maintaining the quality and compliance standards that build long-term business success and client trust.
Heaven Designs stands ready to support solar EPC companies with comprehensive rooftop solar design services that address every aspect of project planning, from initial site surveys through detailed engineering and permit documentation. With proven expertise across India’s diverse markets and a commitment to accuracy, cost-effectiveness, and maximizing energy generation, Heaven Designs helps EPC companies deliver exceptional results to their clients. Get a Quick Proposal Now! by contacting the team at service@heavendesigns.in or calling +91 90811 00297 to discuss your rooftop design requirements and discover how professional design partnership can accelerate your solar business growth across India’s dynamic rooftop solar market. Take the first step today toward delivering compliant, high-performing rooftop design India projects that maximize client satisfaction and your competitive advantage, Get a Quick Proposal Now!
